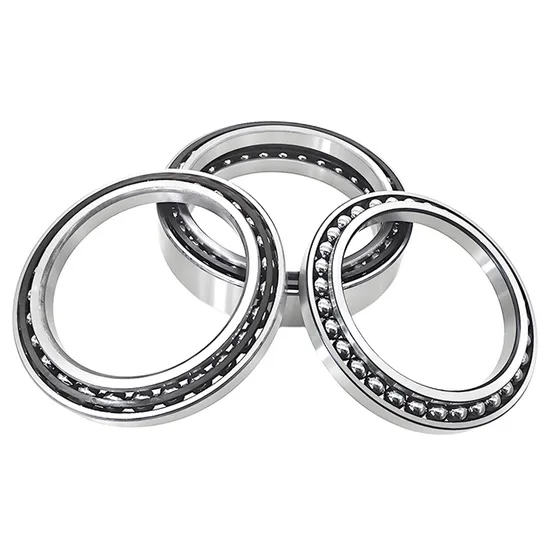

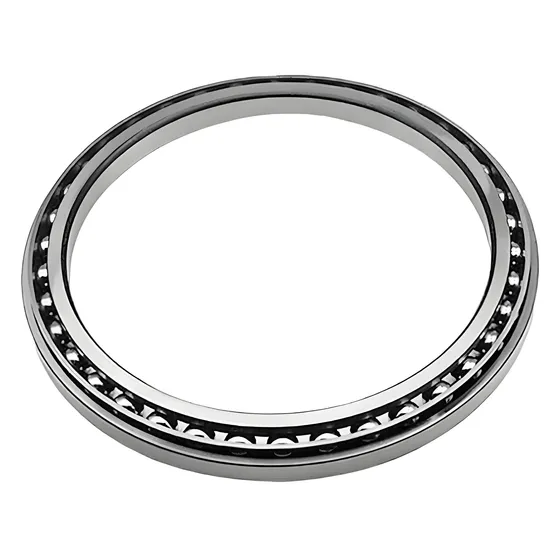

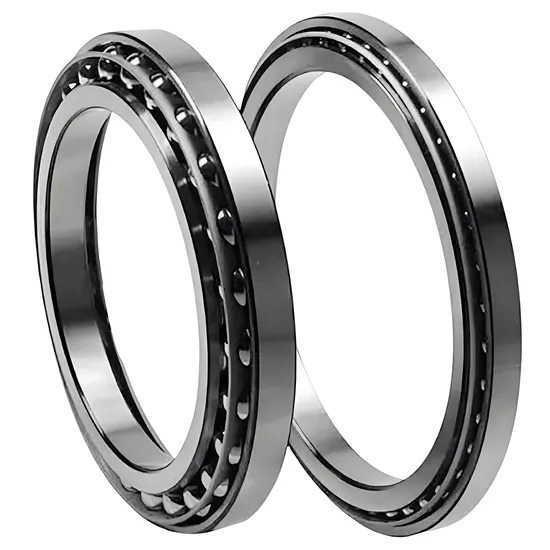

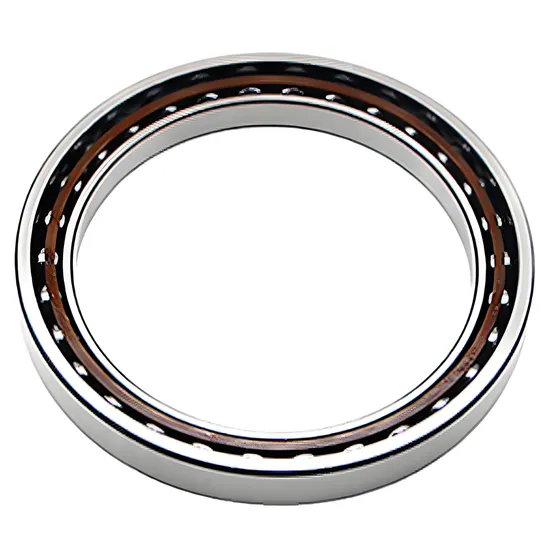

SF4826/SF4826PX1 Excavator Travel Ball Bearing – High-Load, Precision OEM
Specifications
| Inner Diameter | 240 mm |
| Outer Diameter | 310 mm |
| Thickness | 33 mm |
| Load Direction | Radial Bearing |
| Material | Bearing Steel |
| Weight | 5.5 Kg |
Introduction
High-precision excavator bearings (Model: SF4831PX1/SF4815PX1/SF4852PX1/SF4826PX1), unseparated single-row radial design, compliant with DIN/ISO/GB standards. Features ZZ/2RS/open seals, P0–P2 precision rating, grease or oil lubrication, and low-vibration Z1V1–Z3V3 options. Made in China, OEM/ODM available.
Basic Info.
Related Products
Specifications
| Bore Diameter | 25 mm |
| Outer Diameter | 47 mm |
| Thickness | 12 mm |
| Model NO. | 6005-2RS/Z2, 6005-2RS/Z3 |
| Material | Bearing Steel |
| Origin | Germany, Sweden, Japan |
Description
Single row radial bearing with high precision and durability. Designed for reliable performance in various industrial applications. Sealed to protect against contamination and retain lubrication.
Specifications
| Bore Diameter | 45 mm |
| Outer Diameter | 85 mm |
| Width | 19 mm |
| Model NO. | 3206 ATN9 |
| Precision Rating | P0, P6, P5, P4, P2 |
| Lubrication | Grease or Oil |
Description
Angular Contact Ball Bearing with high precision and low vibration, suitable for automobile, rolling mill, mine, and metallurgy applications. Made of bearing steel, it offers reliable performance under radial load. Available in stock with OEM/ODM service.
Specifications
| Bore Diameter | 140 mm |
| Outer Diameter | 250 mm |
| Width | 42 mm |
| Precision Rating | P0, P6, P5, P4, P2 |
| Lubrication | Grease or Oil |
| Material | Bearing Steel |
Description
Angular Contact Ball Bearing 3205 A-RS1ZTN9/MT33, made of high-quality bearing steel, suitable for automobile, rolling mill, mine, and metallurgy applications. High precision, reliable performance, in stock with OEM/ODM service available.
Specifications
| Bore Diameter | 35 mm |
| Outer Diameter | 107 mm |
| Width | 36 mm |
| Model NO. | 3305 A-2RS1/C3 |
| Material | Bearing Steel |
| Origin | China |
Description
Angular Contact Ball Bearing with high precision and strong load capacity, suitable for automobile, rolling mill, mine, and metallurgy applications. Sealed design ensures reliable performance under grease or oil lubrication.
Specifications
| Model No. | 3304 A-2ZTN9/MT33 |
| Dimensions (mm) | 180 x 380 x 75 |
| Load Direction | Radial Bearing |
| Material | Bearing Steel |
| Precision Rating | P0, P6, P5, P4, P2 |
| Stock | In Stock |
Description
Angular Contact Ball Bearing with high precision and durability. Suitable for automobile, rolling mill, mine, and metallurgy applications. Lubricated with grease or oil, ensuring reliable performance under heavy loads.
Specifications
| Bore Diameter | 45 mm |
| Outer Diameter | 85 mm |
| Width | 19 mm |
| Precision Rating | P0, P6, P5, P4, P2 |
| Lubrication | Grease or Oil |
| Material | Bearing Steel |
Description
Angular Contact Ball Bearing QJ209M is designed for high precision applications in automobile, metallurgy, and rolling mills. With a robust steel construction and versatile lubrication options, it ensures reliable performance under radial loads.
Specifications
| Bore Diameter | 260 mm |
| Outer Diameter | 480 mm |
| Width | 80 mm |
| Model NO. | 3203 A-2RS1TN9/C3MT33 |
| Precision Rating | P0, P6, P5, P4, P2 |
| Lubrication | Grease or Oil |
Description
High-performance Angular Contact Ball Bearing made of premium bearing steel, ideal for automobile, rolling mill, mine, and metallurgy applications. Features radial load capacity, unseparated design, and available in stock with OEM/ODM support. Compact and durable with precise engineering for reliable operation under demanding conditions.
Specifications
| Bore Diameter | 60 mm |
| Outer Diameter | 78 mm |
| Width | 10 mm |
| Precision Rating | P0, P6, P5, P4, P2 |
| Lubrication | Grease or Oil |
| Stock | In Stock |
Description
Angular Contact Ball Bearing 71812AC, made of high-quality bearing steel, suitable for automobile, rolling mill, mine, and metallurgy applications. High precision, low vibration, ready for OEM/ODM service.
Specifications
| Bore Diameter | 20 mm |
| Outer Diameter | 52 mm |
| Width | 22.2 mm |
| Model No. | 3304 A-2RS1 |
| Material | Bearing Steel |
| Load Direction | Radial Bearing |
Description
Angular Contact Ball Bearing 3304 A-2RS1 features high precision, low vibration (Z1V1-Z3V3), suitable for automobile, rolling mill, and metallurgy applications. Available in stock with OEM/ODM service.
Specifications
| Bore Diameter | 10 mm |
| Outer Diameter | 19 mm |
| Width | 5 mm |
| Model No. | 6800ZZ |
| Material | Bearing Steel |
Description
Deep Groove Ball Bearing with high precision (P0-P4), available in various clearances (C0/C2/C3). Features long life, low noise, and high-speed performance. Suitable for radial loads, lubricated with grease or oil. In stock with rich supply and OEM/ODM service.
Specifications
| Bore Diameter | 80mm |
| Outer Diameter | 125mm |
| Width | 22mm |
| Model NO. | 6016-2RS/Z2, 6016-2RS/Z3 |
| Material | Bearing Steel |
| Origin | Germany, Sweden, Japan |
Description
Premium radial bearing with single row design, sealed for durability. Made of high-quality bearing steel, suitable for various industrial applications. High production capacity ensures consistent availability.
Specifications
| Model | 3200 A-2ZTN9/MT33 |
| Product Name | Angular Contact Ball Bearing |
| Material | Bearing Steel |
| Precision Rating | P0 P6 P5 P4 P2 |
| Lubrication | Grease or Oil |
| Stock | In Stock |
Description
High-performance angular contact ball bearing ideal for automobile, rolling mill, mining, and metallurgy applications. Durable bearing steel construction ensures reliability under demanding conditions. Available in stock with OEM/ODM support.
