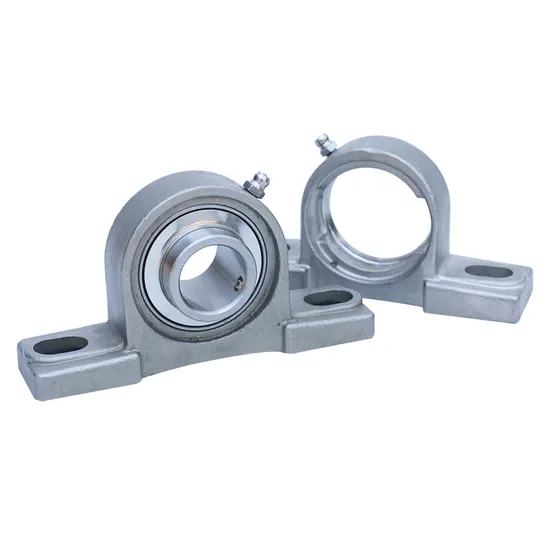

UC315 Pillow Block Bearing – NTN/NSK/Asahi, High-Load Insert Bearing
Basic Info.
| Inner Diameter | 12 mm |
| Outer Diameter | 47 mm |
| Thickness | 31 mm |
| Model No. | UCPH315 |
| Material | Bearing Steel |
| Feature | High Load |
Introduction

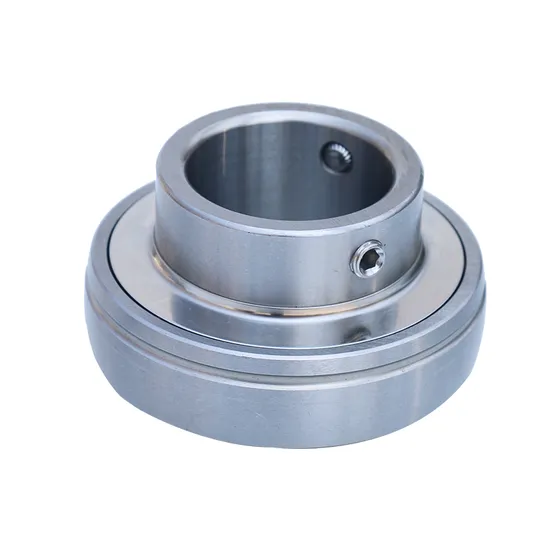

This UCPH315 insert bearing features deep groove raceway, high load capacity, and precision ratings from P0 to P4. Made of premium bearing steel, it supports grease or oil lubrication and is ideal for industrial applications requiring reliability and durability.
